Pictured above: Overall image of New Bay

Waste to Energy Plant

Tees Valley, Middlesbrough
Project History
Construction of a new 33kv – 132Kv bay to provide connection to the energy plant.
Operating Capacity

Project scope of works
Knox Electrical was successful in the tender process to provide labour for this project from Omexom Power and Grid.
The electrical Balance of Plant included Installation of all steelwork support framework, Installation of 3no. 33Kv cable sealing ends, 2no. Disconnectors and Earth switches, 3no. Current-Voltage transformers and 1no. 33kv Circuit breaker.

In addition to above Knox Electrical installed the following:
• Control and Protection panels
• Multicore cabling
• DC Battery Chargers
• Scada Marshalling kiosk
• Earth mat installation to the Substation

The project was successfully energised in 2015

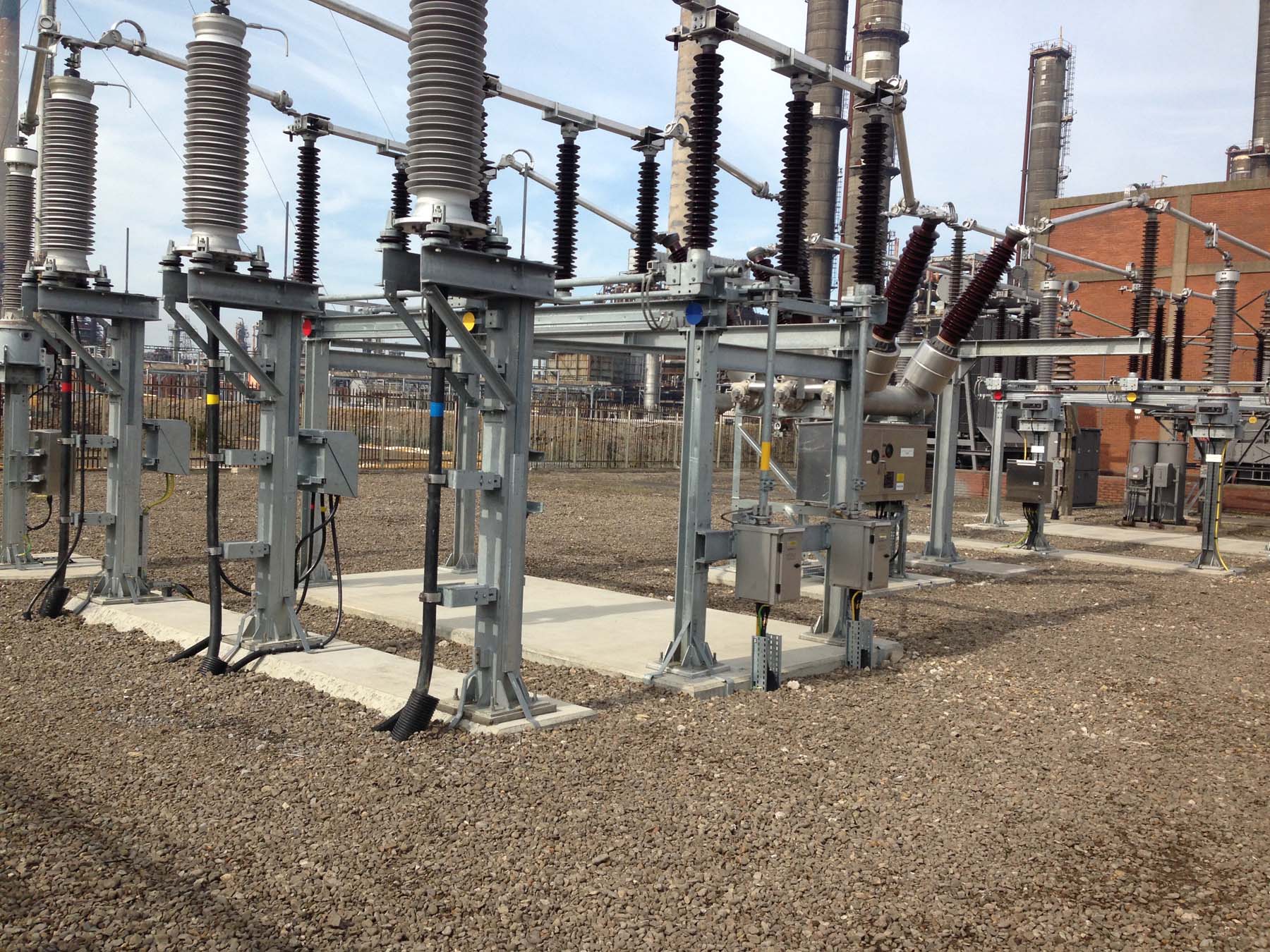

Cable Sealing Ends and Disconnector/Earth switch

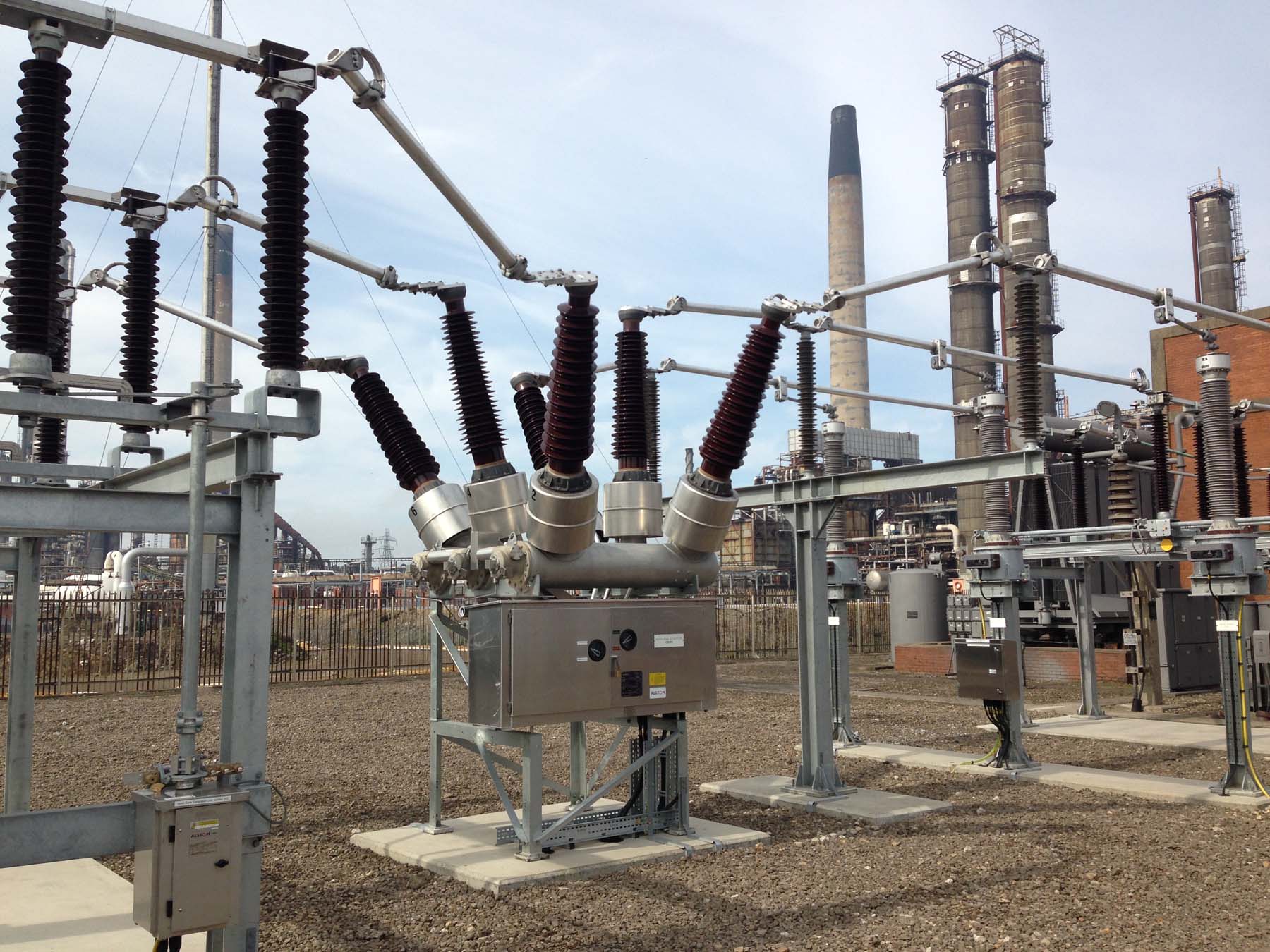

Overhead busbar and Circuit Breaker
